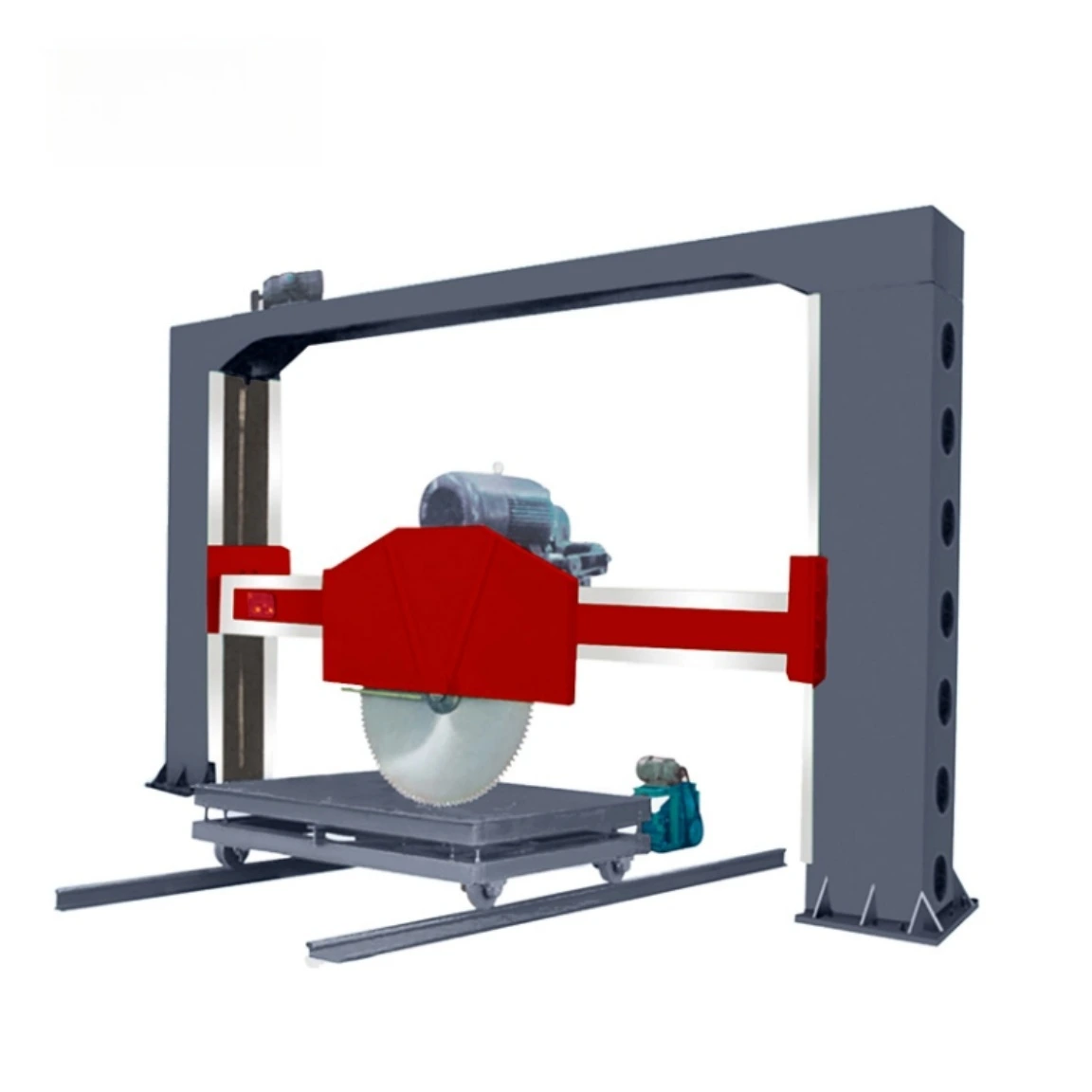

HGQ-1600D Integral Double -direction Gantry Type Block Cutter
The Hizar HGQ-1600D Large Block Cutter Stone Cutting Machine is a powerful and efficient cutting tool designed for cutting large blocks of stone with precision. With its sturdy construction and advanced technology, it offers fast and accurate cutting results for various applications. Its user-friendly interface and safety features make it a reliable choice for professionals in the stone cutting industry.
Selling points:
1. Powerful and efficient cutting performance for large blocks of stone.
2. Sturdy construction and advanced technology ensure fast and accurate cutting results.
3. User-friendly interface and safety features make it a reliable choice for professionals.
PRODUCT FEATURES
This machine is of girder rise and fall type structure, and imported frequency converter is used to conduct stepless speed adjustment.
Its main spindle box moves right and left along the V type guide rail on the crossbeam. The cutting table can rotate in 360°. electromechanical integrated design, this machine is reasonable in structure, high in rigidity, stable in performance.
It can process a variety of stone plates with excellent quality. It’s an ideal set of equipment for processing large granite and marble plates and special-shaped plates.
TECHNICAL PARAMETER
| ITEM | Unit | HGQ1600D | HGQ1600A |
Longitudinal disk diameter | mm | 1600 | 1600 |
Longitudinal lifting stroke | mm | 1400 | 1400 |
Max.cutting length | mm | 3000 | 3000 |
Horizontal disk diameter | mm | 600 | 600 |
Horizontal lifting stroke | mm | 700 | 700 |
Longitudinal main motor power | kw/hp | 57-4/76.3-5.4 | 75-6/100.5/8.04 |
Horizontal motor power | kw/hp | 11/15 | 11/15 |
Gross power | kw | 97/130 | 97/130 |
Crossbeam size | mm | 450*500*5000 | 500*600*5000 |
Table dimensions(LxH) | mm | 2000*2000 | 2000*2000 |
Overall dimesion | mm | 6600*6000*4800 | 6600*6000*4800 |
Water consumption | m3/h | 6.2 | 6.5 |
Approximate weight | kg | 8500 | 12000 |
Cutting basalt depth | mm | 200 | 300 |
Processing efficiency | M3/h | 6-8 | 6-8 |
