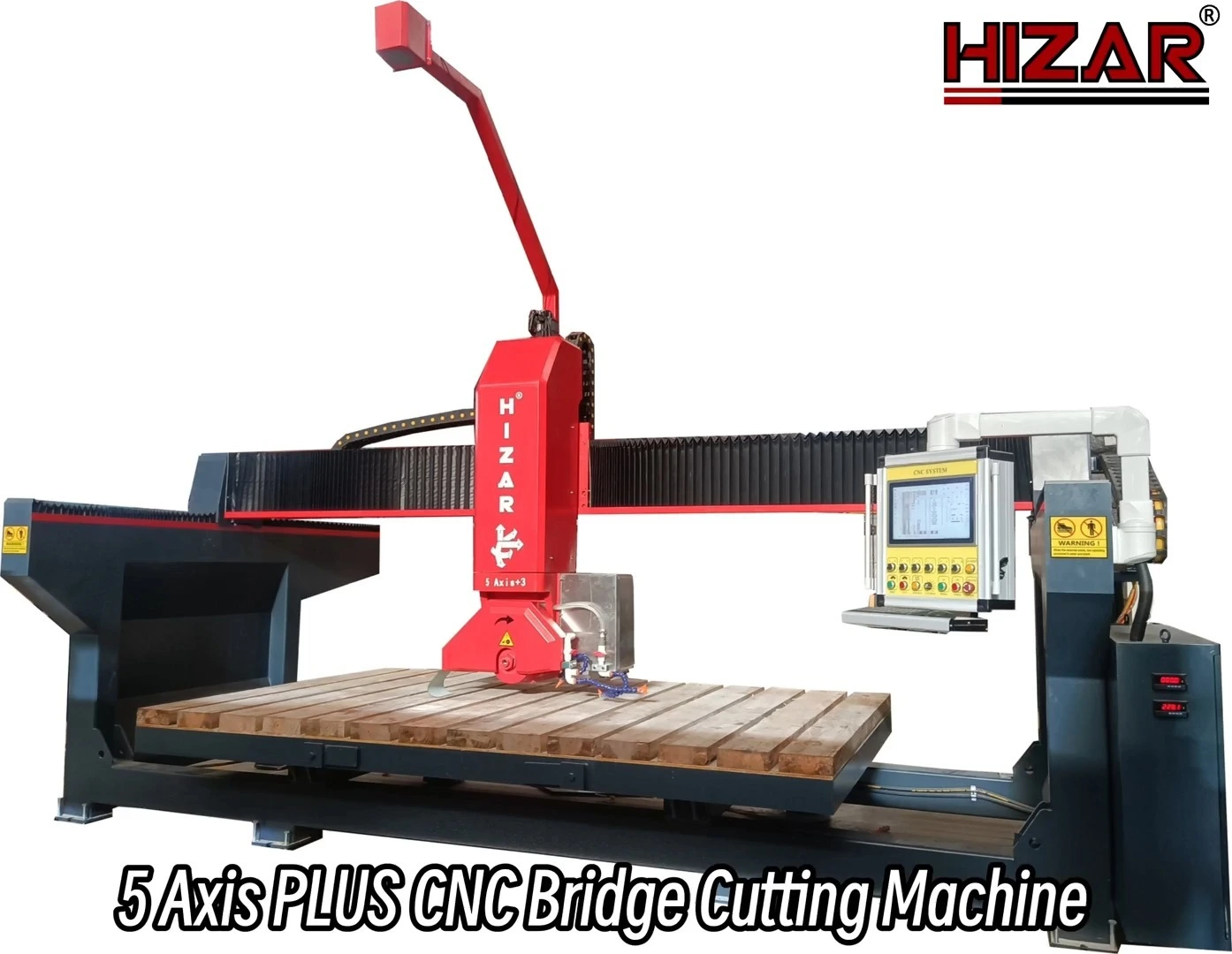

HQQ-5PLUS Hizar 5-axis Bridge Saw CNC Slab Cutting Machine
The Hizar 5-axis Bridge Saw CNC Slab Cutting Machine is a precision cutting tool designed to cut slabs with accuracy and efficiency. Its 5-axis functionality allows for versatile cutting angles and complex designs. With its advanced technology and high-performance features, this machine offers users the ability to achieve flawless cuts on a variety of materials, making it a must-have for any stone fabrication shop.
Product features
1. Energy-saving:
Permanent magent synchronous main motor (optional) is used, reducing power consumption by 30% less power, compared with normal three-phase asynchronous motor.
2. Time-saving:
Hundreds of cutting models (shapes and designs) available for selection. Saving your time and tedious work for programming.
Automatic layout: camera and suction cups enable you to save a lot time and work.
3. Labor-saving & user-friendyly:
Highly-sensitive touch-screen of Human-Computer Interaction, module parameterized imput, no programming needed, intuitive operation, with high proficiency. Highly automatic and intelligent operation greatly enhance your processing efficiency, replacing a lot of labor work, saving you out of headache and risk of staff administration.
4. Cost-saving:
Heavy-duty machincal structure & water-poorf painting guarantee the machine endurable & long lasting.
The core electric components adopted and top Chinese or even famous international brands wiyh high configuration, stable performance & long life & low maintenance cost.
Automatic lubrication system: All moving parts are automatically lubricated with grease to protect the moving parts.
High precision and low waster: All the montion vice adopts high-precision liner guide rail, with hige-precision helical gear transmission, enables stone processiong with high precision, reducing waste of stone.
Technical Paremeter
| Blade diameter | 350mm-600mm |
| Workbench dimension (L×W) | 3200×2000mm/3500×2000mm |
| Saw blade horizontal rotation | 0°-360° |
| Chamfer orientation | 0°-90°-180°-270°/0°-360° |
| Saw blade inclination angle | 0°-45°/0°-90° |
| Table reversion angle | 0°-85° |
| Voltage / Hz | 380V/220V，60Hz，3phase |
| Main motor power | 22kw/30hp |
| Spindle power | 7.5kw/10.5hp |
| Total power | 31kw/41.5hp |
| Processing speed | 0-30m/min |
| Gross weight | 4700kg |
| Overall dimension | 5900×3900×3500mm |
| Camera | Optional 1 |
| Suction cup | Optional 2 |
| High-speed motor (for milling) | Optional 3 |
| Safety fence | Optional 4 |
APPLICATION
Our Customers are widely spreaded in the world and many successful and beautiful cases are welcomed.
WAREHOUSE
PARKING & LOADING
Related TOOLS
OTHERS
1. Delivery Time: Within 2-3weeks after receipt of advanced payment.
2. Warranty: One year for spare parts.
3. Available Power Supply: According to client requirements.
4. Parts including:
① Standard Equipment.
② Bridge including blade holder & two sliding rails.
③ Hydraulic unit & control panel for table.
④ Electric board & control panel of machine.
⑤ Laser device.
⑥ Documents: Goundation Drawing, Electric Drawing, Manual, all in English version.
5. Installation: If require a Chinese Technician to install the machine, customer need to pay for the following expenses:
① Round trip Tickets.
② Food & accommodation.
③ Charge of Visa Application.
④ Day rate for technician or translator, US$150 per person.
