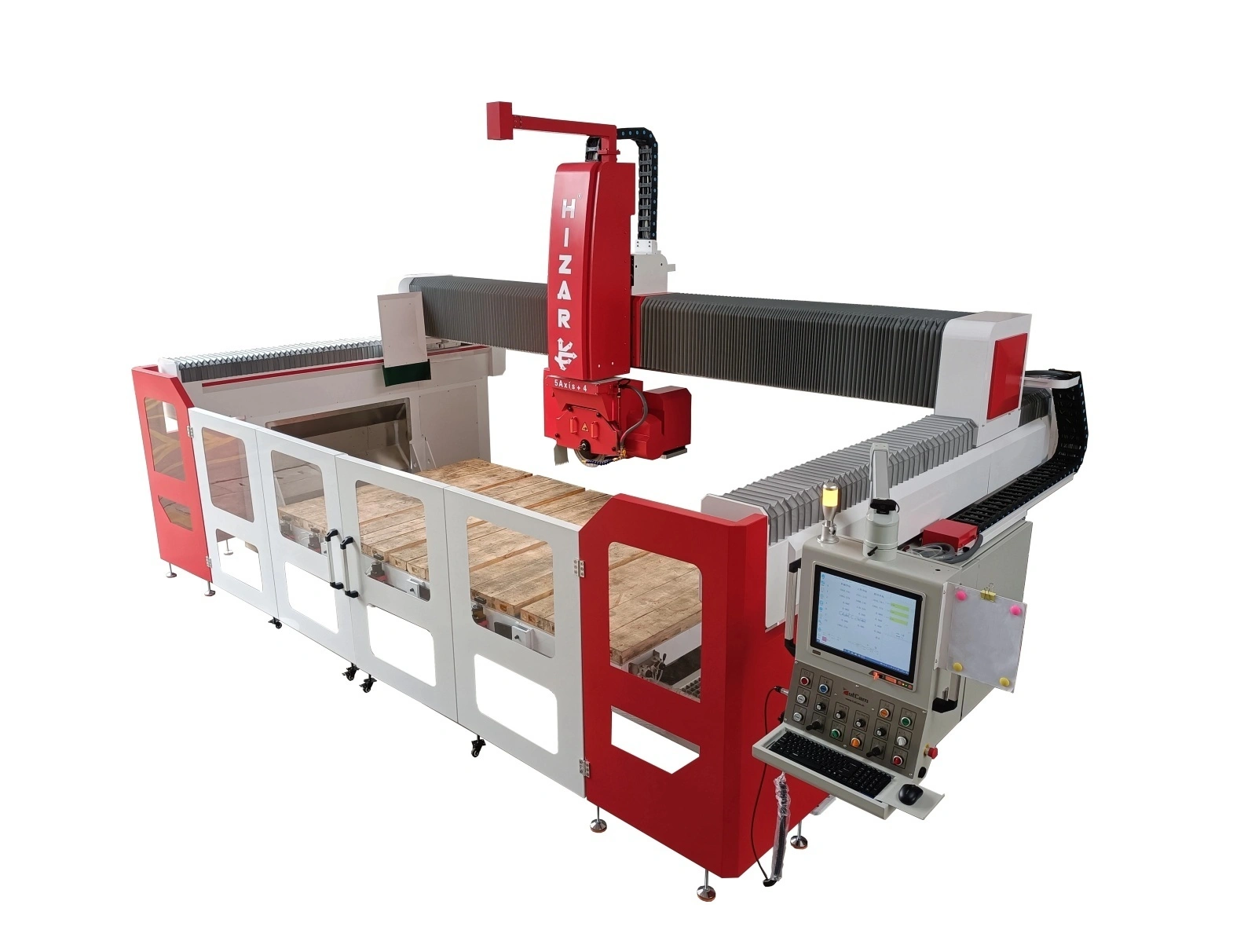

HQQ 5+4 PROMAX Five Axis CNC Bridge Cutting Saw
product features
1. Energy-saving:
Permanent magent synchronous main motor (optional) is used, reducing power consumption by 30% less power, compared with normal three-phase asynchronous motor.
2. Time-saving:
Hundreds of cutting models (shapes and designs) available for selection. Saving your time and tedious work for programming.
Automatic layout: camera and suction cups enable you to save a lot time and work.
3. Labor-saving & user-friendyly:
Highly-sensitive touch-screen of Human-Computer Interaction, module parameterized imput, no programming needed, intuitive operation, with high proficiency. Highly automatic and intelligent operation greatly enhance your processing efficiency, replacing a lot of labor work, saving you out of headache and risk of staff administration.
4. Cost-saving:
Heavy-duty machincal structure & water-poorf painting guarantee the machine endurable & long lasting.
The core electric components adopted and top Chinese or even famous international brands wiyh high configuration, stable performance & long life & low maintenance cost.
Automatic lubrication system: All moving parts are automatically lubricated with grease to protect the moving parts.
High precision and low waster: All the montion vice adopts high-precision liner guide rail, with hige-precision helical gear transmission, enables stone processiong with high precision, reducing waste of stone.
Technical Paremeter
| Blade diameter | 350mm-600mm |
| Workbench dimension (L×W) | 3200×2000mm/3500×2000mm |
| Saw blade horizontal rotation | 0°-360° |
| Chamfer orientation | 0°-90°-180°-270°/0°-360° |
| Saw blade inclination angle | 0°-45°/0°-90° |
| Table reversion angle | 0°-85° |
| Voltage / Hz | 380V/220V，60Hz，3phase |
| Main motor power | 22kw/30hp |
| Spindle power | 7.5kw/10.5hp |
| Total power | 31kw/41.5hp |
| Processing speed | 0-30m/min |
| Gross weight | 5000kg |
| Overall dimension | 5900×3900×3500mm |
| Camera | Optional 1 |
| Suction cup | Optional 2 |
| High-speed motor (for milling) | Optional 3 |
| Safety fence | Optional 4 |
Product configuration
| Serial No. | Parts project name | Specification & parameters | Remark |
| 1 | Processing size | 3200×2000/3500×2000mm | |
| 2 |
Overall machine installation dimension |
6200×3500×3450mm |
X axis processing travel: 3700mm |
| 3 | Overall machine weight | 4500kg | |
| 4 | Processing speed | 0-25m/min | |
| 5 | Overall machine power | 31kw | |
| 6 | Main motor power | 22kw | |
| 7 | Dust cover | Organ cover | |
| 8 | Running guide rail | 30 type high precision | Taiwan Dinghan |
| 9 | Filter | Customized | Anti-interference |
| 10 | Camera | Hikvision wide-angle camera | Positioning |
| 11 | High-speed milling motor | 7.5kw (circulating water cooling) | Drilling and milling |
| 12 | Suction cup | Large and small double stations | Coordination system displacement plate |
| 13 | Rack | High precision helical gear | 2M |
| 14 | Lead screw | 4010 | Taiwan PMI |
| 15 | Machine guide rail lubrication | Independent automatic lubrication | |
| 16 | Servo motor | Guangdong Inovance servo | Z-axis with locking truns |
| 17 | Servo drive | Guangdong Inovance servo | Z-axis with locking truns |
| 18 | Main electrical components | Schencider electrical appliance | |
| 19 | Planetary reducer | Sankai electromechanical 1:8 precision speed reducer | High-precision helical gear |
| 20 | C+A axis reducer | Military industry group, Qinchuan brand | |
| 21 | Main hydraulic components | Zhejiang | |
| 22 | Main pneumatic components | Customized | |
| 23 | Voltage | Selected according to customer site |
3-phase 220V/60Hz or 3-phase , 380V/50Hz |
| 24 | Control system | ||
| 25 | Operation screen | All-in-one industrial computer | A 17-inch touch-screen industrial computer |
| 26 | Operation box | Cantilever operation box | Ergonomic customization |
| 27 | Workbench | National standard profilr+wood fumigation | Flip 85° slow speed to position |
| 28 | Wireless network | Available | |
| 29 | Remote video monitoring | Built-in | Hotspot links / wireless network links, Support remote control and monitoring |
| 30 | Painting | Weather-resistant paint sprayed three times | Rust-proof, anti-corrosion, and anti-discoloration |
Product detaIls
Operation panel(touch screen)
Electrical appliance cabinet
electrical appliance brand and details
| Frequency Converter - Taiwan QMA | Main Motor - QMA 22 kw | Inovance Servo Drive |
| CUTCAM System | Pin Terminal Blocks | Relay (electronics) ---Schneider |
| Terminal Block---Schneider | Power Switch---Schneider | Disconnect Switch---Schneider |
| External Switch---Schneider | Brake Resistors---Schneider | Filtering Apparatus---Schneider |
ANY SHAPES ARE AVAILABLE
APPLICATION
Our Customers are widely spreaded in the world and many successful and beautiful cases are welcomed.
Positive feedback from customers
WAREHOUSE
PARKING & LOADING
Related TOOLS
OTHERS
1. Delivery Time: Within 2-3weeks after receipt of advanced payment.
2. Warranty: One year for spare parts.
3. Available Power Supply: According to client requirements.
4. Parts including:
① Standard Equipment.
② Bridge including blade holder & two sliding rails.
③ Hydraulic unit & control panel for table.
④ Electric board & control panel of machine.
⑤ Laser device.
⑥ Documents: Goundation Drawing, Electric Drawing, Manual, all in English version.
5. Installation: If require a Chinese Technician to install the machine, customer need to pay for the following expenses:
① Round trip Tickets.
② Food & accommodation.
③ Charge of Visa Application.
④ Day rate for technician or translator, US$150 per person.
