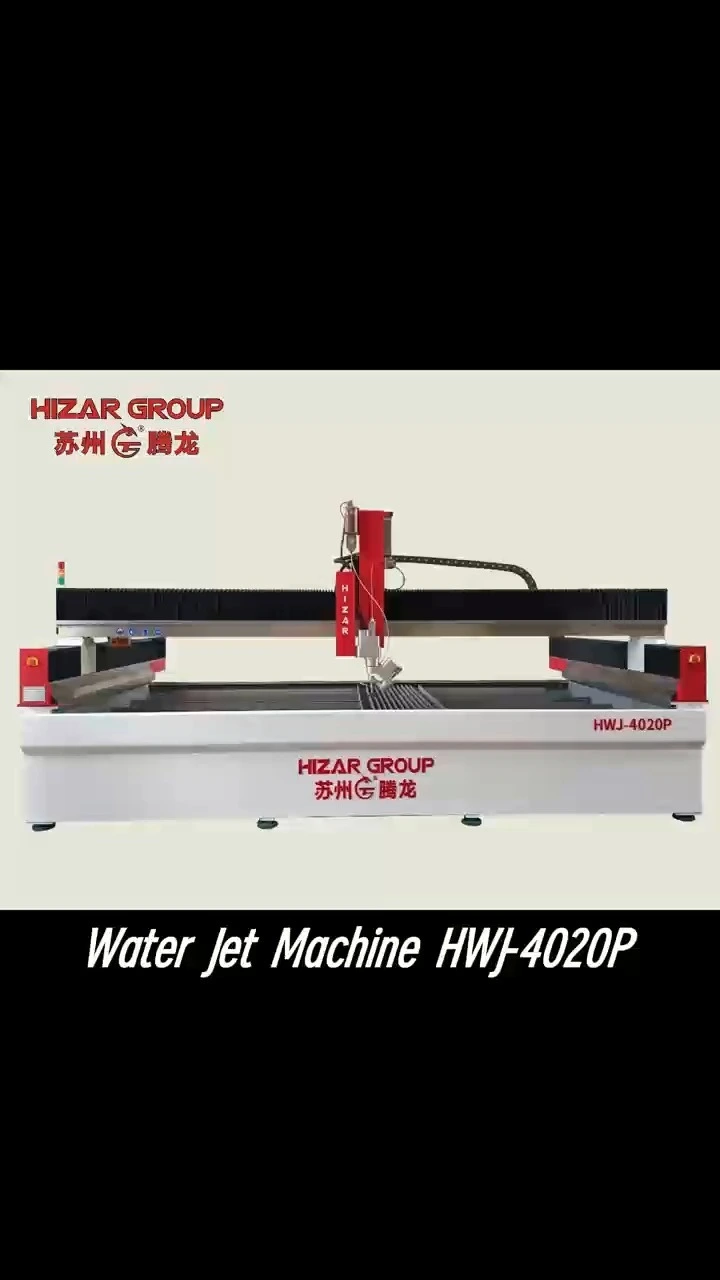

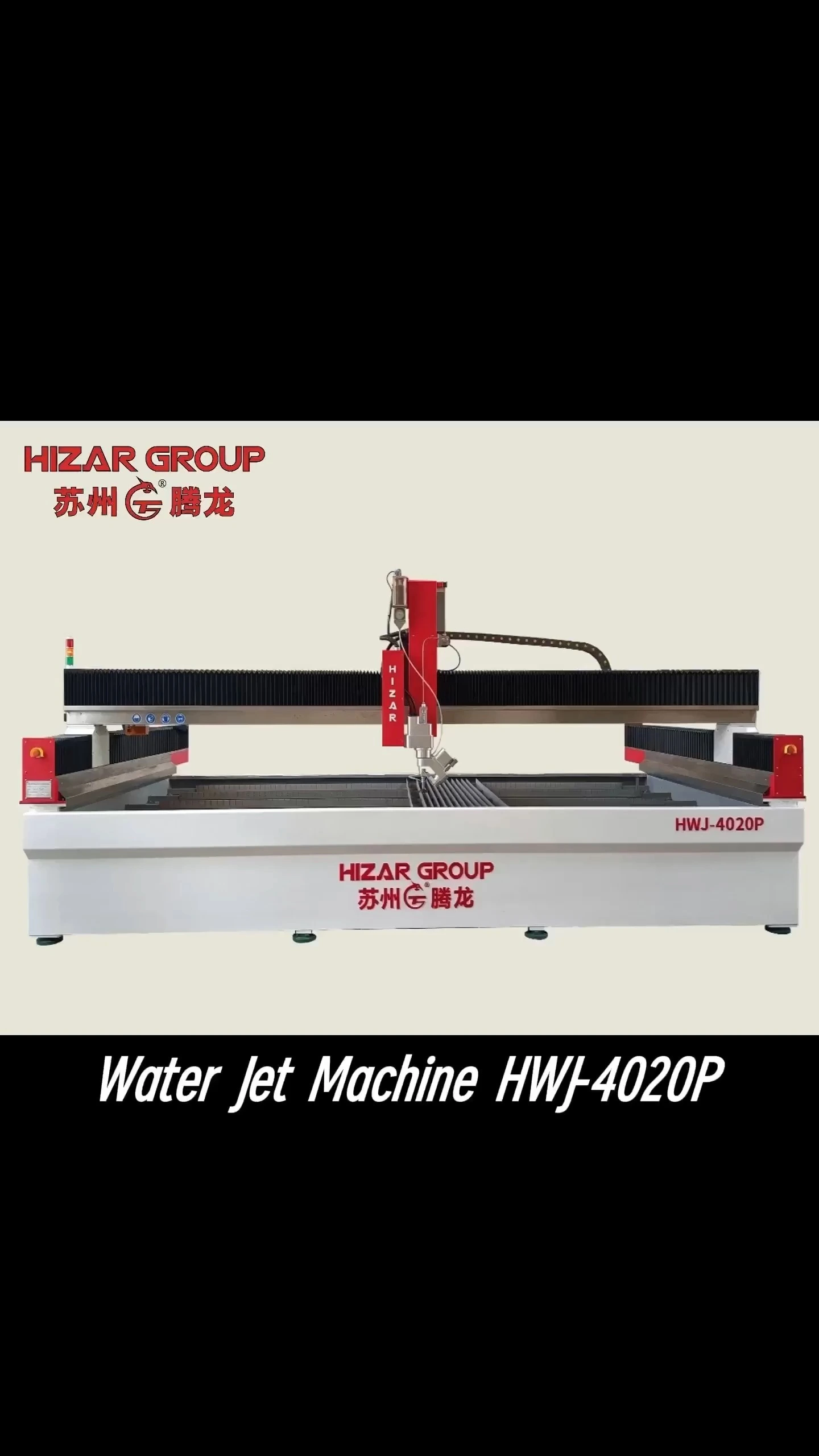

HWJ-4020P AC Five Axis Waterjet Machine
Product features
-
-
Unmatched Design Freedom & Complex 3D Capability: Creates intricate shapes, deep contours, compound curves, undercuts, and detailed sculptures impossible with saws or 3-axis machines (e.g., complex sink bowls, ornate columns, flowing countertop edges, bespoke art pieces).
-
Perfectly Square Edges & Miters (Taper Elimination): Dynamically tilts the cutting head to compensate for the natural waterjet taper ("kerf angle") as it cuts through thick stone. This results in:
-
True 90-degree edges on slabs (critical for seamless joins).
-
Precise miter cuts for perfect corner joints without gaps.
-
Significantly reduced need for secondary edge finishing.
-
-
Superior Edge Quality: Produces smooth, clean cuts directly from the machine, often requiring minimal or no additional sanding or polishing, saving time and labor costs.
-
Cold Cutting Process (No Heat-Affected Zone - HAZ): Uses ultra-high-pressure water and abrasive, generating no heat. This:
-
Prevents cracking, chipping, or thermal stress in sensitive stones like marble or quartzite.
-
Avoids altering the stone's inherent structure or color near the cut line.
-
Eliminates the risk of warping.
-
-
Minimal Material Stress & Vibration: The non-contact cutting process applies very little mechanical force or vibration to the stone, protecting fragile materials and ensuring dimensional accuracy.
-
Versatility Across Stone Types & Thicknesses: Effectively cuts virtually any natural or engineered stone (granite, marble, quartz, onyx, limestone, slate, etc.), regardless of hardness or brittleness, and handles a wide range of thicknesses on a single machine.
-
Reduced Waste & Optimized Material Usage: Advanced nesting software allows for highly efficient arrangement of complex parts on a stone slab, minimizing scrap and maximizing yield.
-
No Tool Wear Changes Cut (Unlike Saws): The cutting "tool" is a stream of water and abrasive. There are no physical blades to wear down or become dull, ensuring consistent cut quality and kerf width from the first cut to the last on a project.
-
Single Setup for Complex Parts: Often, highly complex 3D shapes can be cut complete in a single setup, reducing handling time, potential for damage, and alignment errors compared to multi-step processes.
-
Enables Innovative Architectural & Artistic Applications: Opens doors for designers, architects, and artists to realize previously impossible or prohibitively expensive concepts in stone, pushing the boundaries of the material.
-
Technical Paremeter
| Model | HWJ-4020P |
| Structure | Gantry Type |
| X axis | 4100mm |
| Y axis | 2100mm |
| Z axis | 200mm |
| Effective cutting area | 4000mm×2000mm |
| Repeatability accuracy | ±0.025mm |
| Running Speed | 10m/min |
| Power | 380V AC, 60HZ, 3 phase 4 wire system (can be custoized) |
| Maximum output flow | 3.7L/min |
| Maximum orifice | 0.30mm |
| Maximum output pressure | 420Mpa |
| Intensifer confiuration | Single |
| Pressure control | Manual |
| Shifting control | Electro-hydraulic control |
| Pump motor power | 37Kw/50HP |
| Pump votage | 380V/60HZ (Can be customized) |
| Pump box Width | 1300mm |
| Pump box Length | 1800mm |
| Pump box Height | 1500mm |
| Operation weight | 1200KG |
| Options | Air cooling/Water cooling |
CNC Controller & Software
CNC CONTROLLER
- 17”LCD touch screen display
- DNC on-line working function
- Functions of returning arbitrary point, bending,
and circular arc working auto deceleration.
- Function of cutting figure imitation display.
- 160GB memory hard disk
- INOVANCE servo driver and motor.
-1GB memory card
- Multilingual function（English,Portuguese, Spanish, French, Russianetc.,）
- Drive-by-wire and hand-hold controller,(according to requests)
SOFTWARE
JetEdge P20B special software is customized for CNC Waterjet cutting.
The functions of P20B are as follows:
- Change DXF document which is educed from AUTOCAD
into numerical control process.
- Serial communications between PC and CNC.
- Open database can shore parameter, just click the material,
prameter will be loaded automatically
- Calculate length of line and time automatically
- Control cut-out and cut-in automatically
- Cutting track auto imitation function
- The functions of lessening speed on the corner remanding material bridging and lancing
Cutting table
1.1 Platform body
1.1.1structure feature
- The machine body with the welding box structure,then make stress relief by annealing process.
- Table body and water tank which are integral structure, lessen the splash of sands and water into moving parts,It is also conducive to the disassembly and transportation of the machine.
- X-axis and Y-axis transmit to rolling ball screw mandrel.
1.1.2Controlling system
We adopt ATCUT controlling system and INOVANCE servo system.
1.1.3Chief technical parameter
1.1.4Transmission system
- We adopt linear guide rail and ball screw to ensure accuracy and quality.
1.1.5Prevention system
- Over travel auto spacing function and soft spacing function
- Unique prevention design: new mazy protection and z-axis totally enclosed professional design prevent sand and water from eroding the guide screw and linear guide rail.
1.1.6Lubrication system
- We adopt auto mass lubrication system to make oil reach every oil site on time and also make table steadier and easier.
1.2 Cutting head assembly
1.2.1 HWJ Cutting head assembly
1The cutting efficiency integrative abrasive cutting head is one of
highest machine in the world.
- It has rectification function and lessens the time of assembling.
- Changing the wearing parts is simple.
1.2.2 HWJ hp water switch
- Air valve can open and close the hp water instantaneously.
- With the help of CNC we can control hp water automatically.
- Blockage pressure can be adjusted arbitrarily to realize
the operation under the low pressure circumstances.
1.2.3 HWJ abrasive feeding system
- Dynamic sand feeding
- Manual makes up the sand for the feeder
(assisted with sand meter, auto feeder
can realize automatically feeding)
High pressure pump
2.1 HP Generator
-The configurations single pole two-way plunger type intensifier
-The intensifier ACCESSORIES are made in USA(Accustream/Hypertherm)
- Single-row type water filtering system (5Micron, 1micron, 0.45micronparallel)
- Manual pressure regulation function
- Extra pressure auto stop and protection
- Three-ply safeguard
Auto Abrasive Feeding System
3.1 DCSA-B abrasive meter regulator
- Dynamic sand feeding
- Dynamic type comes over traditional type.
- Manual type makes the operation easier.
- With the help of CNC we can control abrasive automatically
3.2 Abrasive hopper
- Side-hanging sand hopper
- There is a window on the side face. It can remind workers when to feed sand
- It can provide the sand consumption every time after it is filled up.
3.3 Abrasive tank
- It provides the functions of shoring and sanding sands for the machine,
also improves the automation and lessens intensity of labor.
- Capacity: 170L
- High accuracy can remain workers when to feed sands.
Auto Air Cooling system
- The working environment is clean and tidy.
- Good control the hydraulic system oil temperature.
Parameter：
Max flow: 500L / min
Working pressure: 3Mpa
Cooling capacity: 55KW / h
Heat exchange area: 45m ²
Fan motor: 550W
Voltage: 380V
Frequency: 50 / 60Hz
Water Soften System (optional)
Here are many kinds of compounds in the running water.
(Calcium carbonate, carbonic acid)As the machine
working, the raising of the temperature will generate
some substance of the reaction of chemistry or physics-as
we called it furring, which will reduce the life of the high
pressure system and increase the cost. After many years’
experiences, the system can solve the problem.
Sludge Removal System (optional)
Introduction:
Remove the abrasive from the tank automatically,
separate the abrasive and water. reduce the labor force,
improve work efficiency.
Suction pump parameters：(China)
The single pump parameters
Flow: 10M³/H
Shoot range : 50 M
Outlet pressure: 6 kgf/cm²
Absord range: 7 M
Maximum promise through solid part: 4.5mm
Pump inlet and outlet diameter: 40mm
Power:compressed air
The max inlet pressure: 7 kgf/cm²
The max air consume: 0.6 mm³/min
Tracheal diameter:10mm
Collection box: 1.6m*1.5m*1.2m
More details photo
