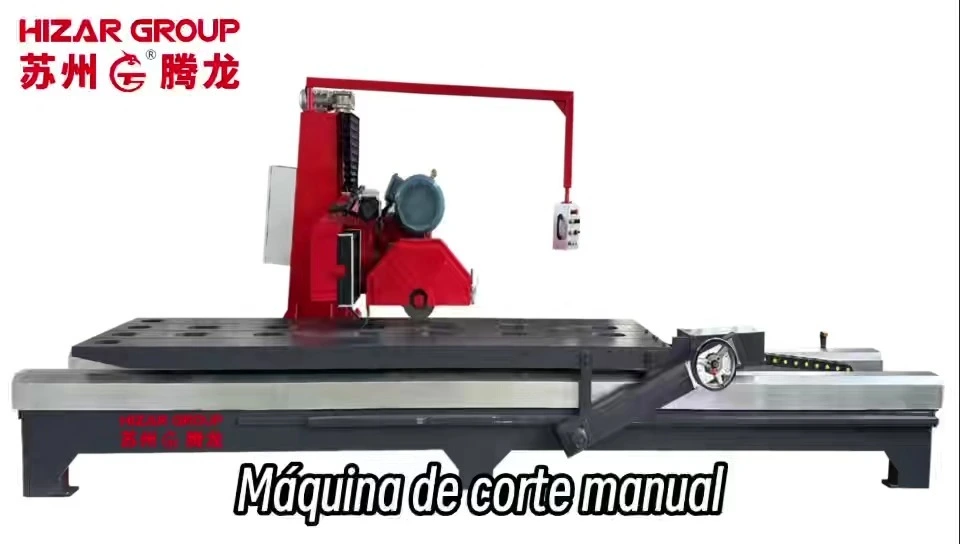

HEC-3500 Oil Sealed Edge Cutting Machine

Product features

This machine is a conventional edge trimming system designed for cutting and chamfering granite, marble, and other stone materials. With compact conjoint structure (less vibration)and oil-immersed track, HEC3500 is speciallydesigned for an easy and high precision processing for the edge cutting and trimming of smallslates ,slab or even thick tile.
Electric up and down movement.
Highlights: Economical, Practical, Helpful and Stable.

Inquiry

Write a Review

PRODUCT FEATURES

This machine is a conventional edge trimming system designed for cutting and chamfering granite, marble, and other stone materials. It features:

Oil-sealed construction for enhanced durability
User-friendly operation with convenient handling
Exceptional stability during processing
High performance-to-cost ratio for efficient stone processing

Ideal for stone fabrication workshops requiring precision edge work.

TECHNICAL PARAMETER

Technical parameter	HEC-2700	HEC-3000	HEC-3500
Overall dimension	426022001600MM	486025002100MM	540025002200MM
Processing size	2700*1200mm	3000*1200mm	3500*1200mm
Processing thickness	130mm	150mm	150mm
Blade diameter	350-600mm	350-600mm	350-600mm
Main motor power	11kw/14.9hp	11kw/14.9hp	15kw/20.39hp
Gross power	11.5kw/15.6hp	11.75kw/15.97hp	16.5kw/22.43hp
Water consumption	2m³/h	2m³/h	2.5m³/h
Gross weight	1400kg	1950kg	2400kg
Overall dimension	225034002100mm	410022502100mm	450030002300mm
optional function	45 degree cutting auotomatically
	worktable moving automatically
	upand down motor moving auotomatically
