HM3020-4D Engraving machine
◆ The whole machine adopts steel structure, which has good rigidity and is not easy to be deformed, and the load capacity of the machine can reach more than one ton;
◆ Stainless steel water tank can better adapt to the harsh environment of machine tool processing, improve machine tool quality and increase service life;
◆ The Y axis adopts imported 30 guide rails, so the machine runs more smoothly during processing;
◆ Constant power spindle motor, high cutting force and high efficiency;
◆ Two-way tool cooling system, effectively improve tool life;
◆ CNC digital control, power-off memory function, power-off, knife-cutting and continuous carving function;
◆ Compatible with any advanced CAM software in the world: Type3 / Artcam / CAXA / UG / Pro-E / Mastercam / JD / Wentai, etc.
PRODUCT FEATURES
◆ The whole machine adopts steel structure, which has good rigidity and is not easy to be deformed, and the load capacity of the machine can reach more than one ton;
◆ Stainless steel water tank can better adapt to the harsh environment of machine tool processing, improve machine tool quality and increase service life;
◆ The Y axis adopts imported 30 guide rails, so the machine runs more smoothly during processing;
◆ Constant power spindle motor, high cutting force and high efficiency;
◆ Two-way tool cooling system, effectively improve tool life;
◆ CNC digital control, power-off memory function, power-off, knife-cutting and continuous carving function;
◆ Compatible with any advanced CAM software in the world: Type3 / Artcam / CAXA / UG / Pro-E / Mastercam / JD / Wentai, etc.
TECHNICAL PARAMETER
Item | unit | HF1325-1D | HM3015-2D | H3020-4D |
| Overall dimension | mm | 1300*2500 | 3000*1500 | 3000*2000 |
| Processing size | mm | 1300*2500 | 1450*1500*2 | 750*2000*4 |
| Feed height | mm | ≤400/700 | ≤400/700 | ＜400 |
| Air speed | m/min | 25 | 25 | 20 |
| Processing speed | m/min | 1-15 | 1-15 | 1-15 |
| Spindle power | kw/hp | 5.5/7.3 | 5.5/7.3 | 5.5/7.3 |
| Motor | // | 1108/2208AC SERVO MOTOR | 1108/2208 AC SERVO MOTOR | 1.5kw Ac digital servo motor |
| Control sysstem | // | WEIHONG NC60A | SHANLONG L68 | WEIHONG NC60A |
| Overall dimension | mm | 2250*3400*2100 | 4100*2250*2100 | 4500*3000*2300 |
| Overall weight | kg | 1900 | 2800 | 3500 |

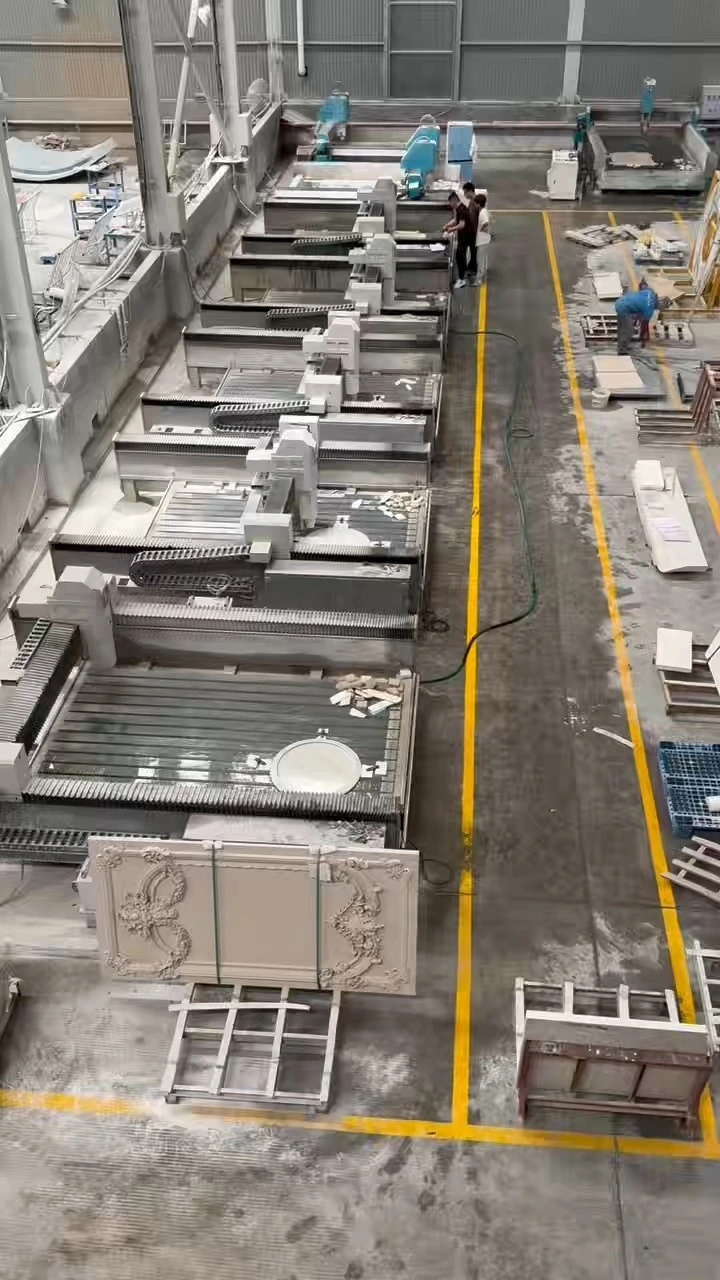

Working spot
Engraving effect
