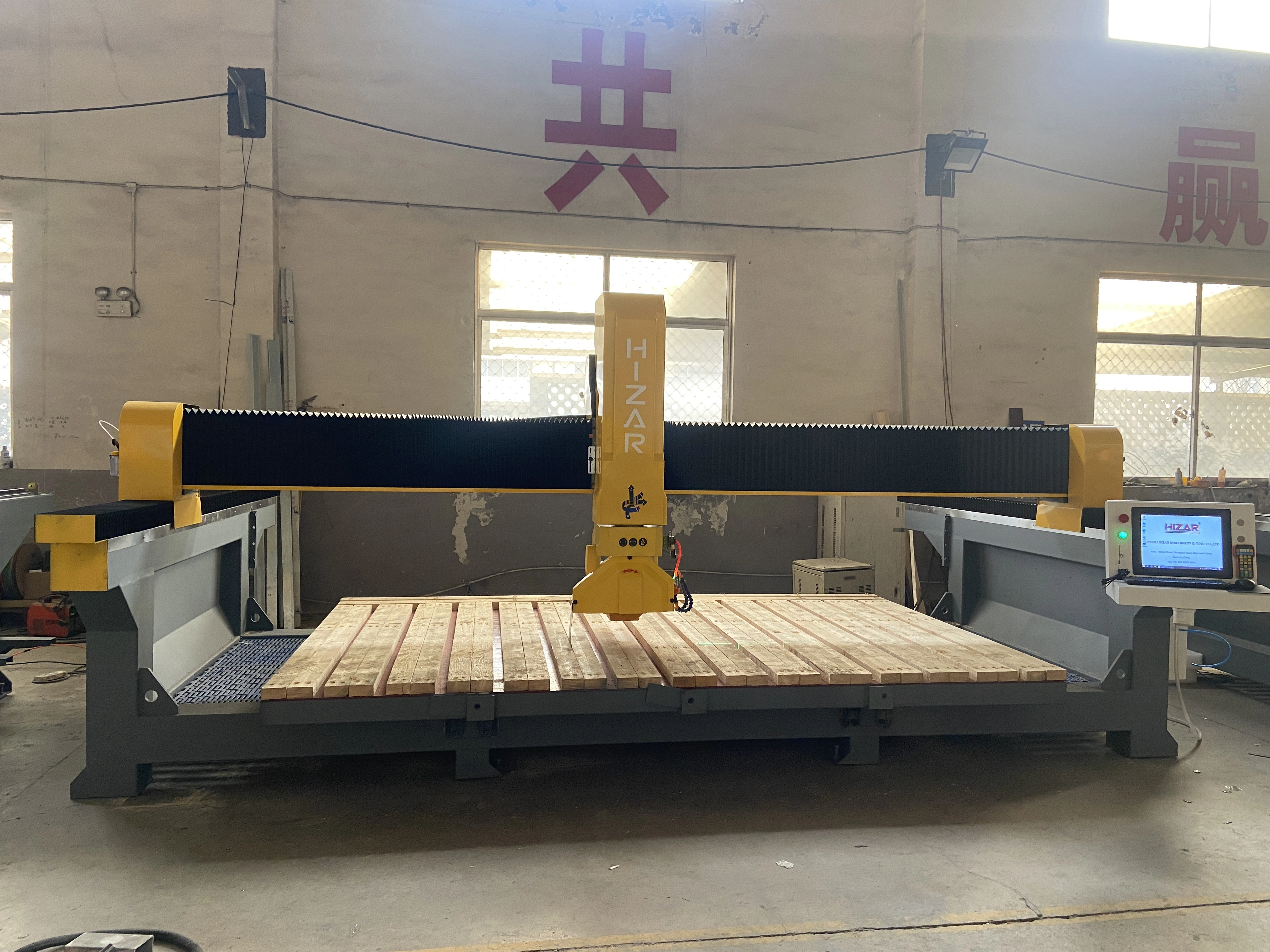

HQQ 4Axis CNC Machine Precise Stone Cutting Machine for Marble and Granite
Introducing the HQQ 4Axis CNC Machine, designed specifically for precision stone cutting in marble and granite applications. Ideal for manufacturers, artisans, and contractors, this advanced machine seamlessly handles intricate designs and large-scale projects with impeccable accuracy. Whether you are creating custom countertops, stunning sculptures, or detailed architectural elements, the HQQ CNC machine elevates your craftsmanship by delivering robust performance and unparalleled results.
Product features
1. Energy-saving:
Permanent magent synchronous main motor (optional) is used, reducing power consumption by 30% less power, compared with normal three-phase asynchronous motor.
2. Time-saving:
Hundreds of cutting models (shapes and designs) available for selection. Saving your time and tedious work for programming.
Automatic layout: camera and suction cups enable you to save a lot time and work.
3. Labor-saving & user-friendyly:
Highly-sensitive touch-screen of Human-Computer Interaction, module parameterized imput, no programming needed, intuitive operation, with high proficiency. Highly automatic and intelligent operation greatly enhance your processing efficiency, replacing a lot of labor work, saving you out of headache and risk of staff administration.
4. Cost-saving:
Heavy-duty machincal structure & water-poorf painting guarantee the machine endurable & long lasting.
The core electric components adopted and top Chinese or even famous international brands wiyh high configuration, stable performance & long life & low maintenance cost.
Automatic lubrication system: All moving parts are automatically lubricated with grease to protect the moving parts.
High precision and low waster: All the montion vice adopts high-precision liner guide rail, with hige-precision helical gear transmission, enables stone processiong with high precision, reducing waste of stone.
Technical Paremeter
| Blade diameter | 350mm-400mm |
| Workbench dimension (L×W) | 3200×2000mm/3500×2000mm |
| Saw blade horizontal rotation | 0°-360° |
| Chamfer orientation | 0°-90°-180°-270°/0°-360° |
| Saw blade inclination angle | 0°-45° |
| Table reversion angle | 0°-85° |
| Voltage / Hz | 380V/220V，50/60Hz，3phase |
| Main motor power | 15kw/20hp |
| Total power | 24.5kw/33hp |
| Gross weight | 4000kg |
| Overall dimension | 5600×3300×2800mm |
| water Consumption | 3.5m3/H |
Product detaIls
Operation panel(touch screen)
Electrical appliance cabinet
electrical appliance brand and details
| Frequency Converter - Taiwan QMA | Main Motor - QMA 22 kw | Inovance Servo Drive |
| CUTCAM System | Pin Terminal Blocks | Relay (electronics) ---Schneider |
| Terminal Block---Schneider | Power Switch---Schneider | Disconnect Switch---Schneider |
| External Switch---Schneider | Brake Resistors---Schneider | Filtering Apparatus---Schneider |
ANY SHAPES ARE AVAILABLE
APPLICATION
Our Customers are widely spreaded in the world and many successful and beautiful cases are welcomed.
WAREHOUSE
PARKING & LOADING
Related TOOLS
OTHERS
1. Delivery Time: Within 30-45days after receipt of advanced payment.
2. Warranty: One year for spare parts.
3. Available Power Supply: According to clients requirements.
4. Parts including:
① Standard Equipment.
② Bridge including blade holder & two sliding rails.
③ Hydraulic unit & control panel for table.
④ Electric board & control panel ofr machine.
⑤ Laser device.
⑥ Documents: Goundation Drawing, Electric Drawing, Manule, all in English version.
5. Installation: If require a Chinese Technician to install the machine, customer need to pay for the following expenses:
① Round trip Tickets.
② Food & accommodation.
③ Charge of Visa Application.
④ Salary for technician or translator, each person USD150/day.
