HMB1121 Shaped table top grinding machine

Features:
1、Suitable for all kinds of natural materials, quartz stone, artificial stone, dekton slabs, luxury stone’s edge processing.
2、Adopt satellite turntable knob, turntable and spindle motor rotation speed can be adjusted at any speed while working.
3、Using the cylinder pulling force can be semi-automatic grinding of simple shape alien stone.
4、When grinding a large bevel, install a bowl-shaped grinding wheel, tilt the grinding head backward to adjust the bevel angle, grind the end face, or directly grind with a large bevel grinding wheel.
5、If you are grinding special-shaped edge, you can replace the pattern grinding wheel to process any shape you want.

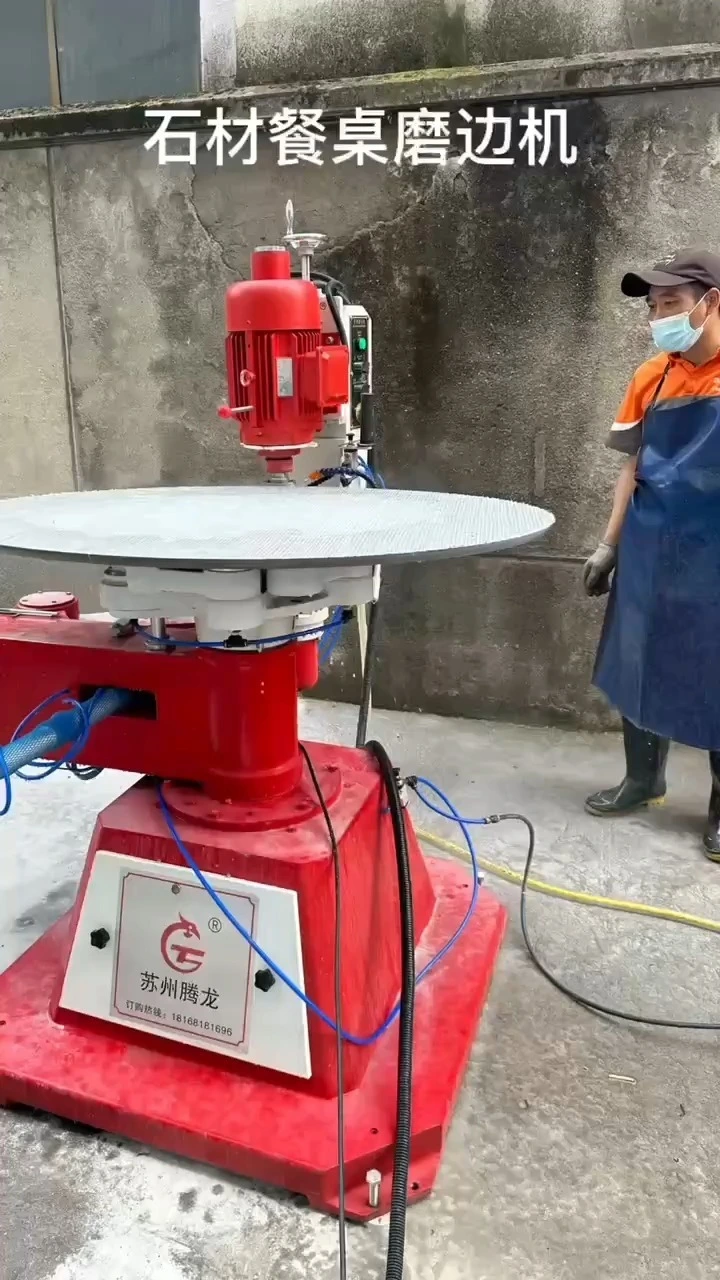

6、Round tabletops can be processed fully automatically, and the worktable can rotate. However, processing special-shaped tabletops requires manual operation by workers.

    oops...!

    no product data.

    Go to homepage


    PRODUCT FEATURES


      The HMB1121 is engineered for versatile edge shaping of stone countertops, offering outstanding adaptability and performance. With cylinder pulling force, it enables semi-automatic grinding of simply shaped stones. For large bevel grinding, the machine allows backward tilting of the grinding head and supports the installation of a bowl-shaped grinding wheel to adjust bevel angles. When working with special-shaped edges, pattern grinding wheels can be replaced to achieve any desired contour. Circular tabletops can be processed fully automatically with a rotating worktable, while irregular shapes require manual assistance, combining automation with hands-on control to meet a wide range of production needs.


    TECHNICAL PARAMETER


    TECHNICAL PARAMETER

    TLMB1121

    Processing diameter

    110mm~2100mm

    Processing thickness

    10~100mm

    Maximum width of beveled edge

    35mm

    Working table speed

    10~90

    Independent turntable speed

    1.2~6r/min

    Voltage power

    380V 50Hz 5kW

    Machine weight

    1000kg

    Overall size

    1300×1700×2100mm


    Profiling effect


    碧玺红叶 长桌 (2)
    碧玺红叶 长桌 (2)
    金色雪山飞狐 长桌
    金色雪山飞狐 长桌
    祖母绿 长桌
    祖母绿 长桌
    未知 组合茶几
    未知 组合茶几
    金色潘多拉 水滴型茶几
    金色潘多拉 水滴型茶几
    春风浅草 圆桌 (2)
    春风浅草 圆桌 (2)
