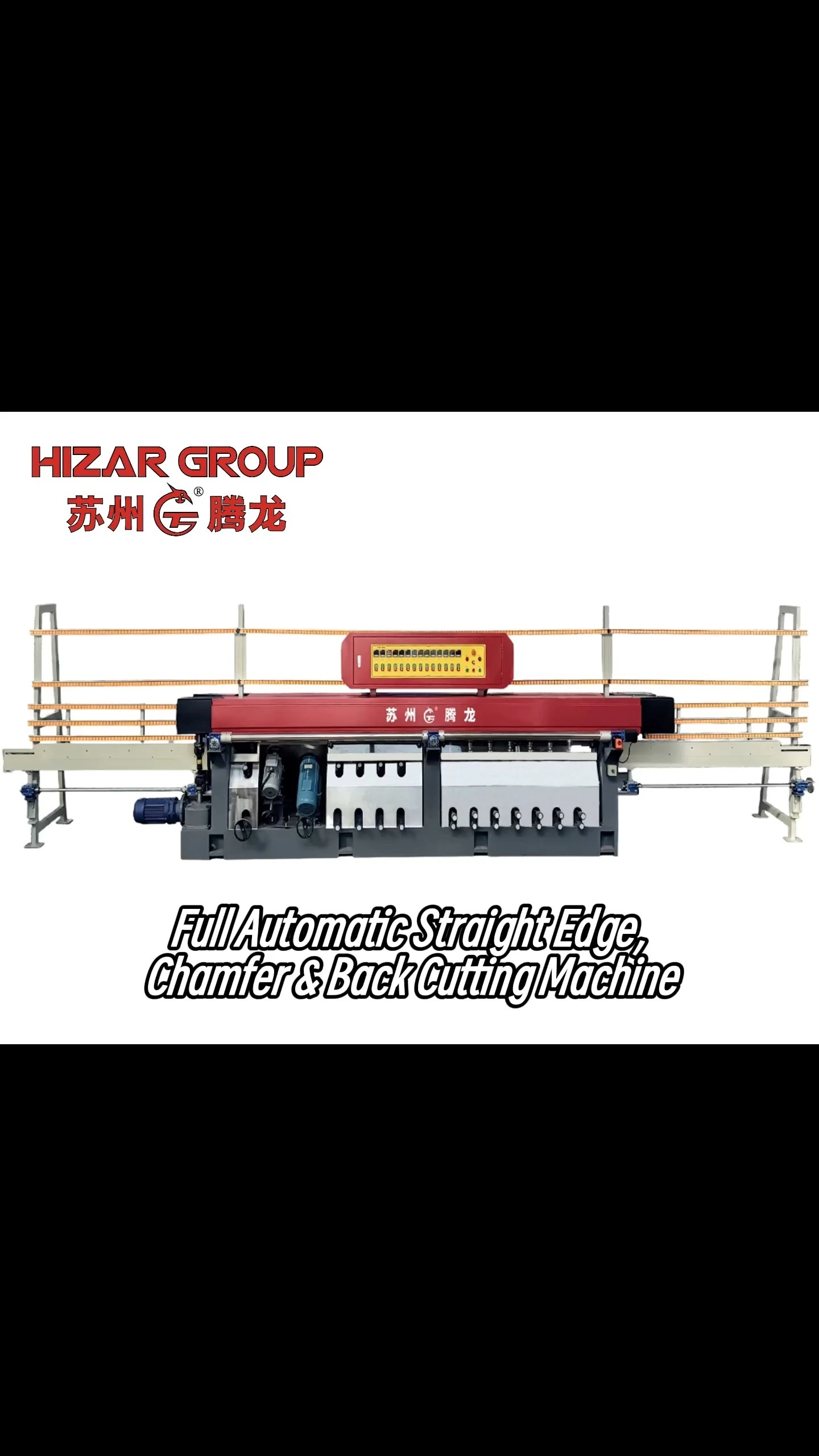

H14E-80B Full Automatic Straight Edge, Chamfer and Back Cutting Machine
This machine is designed for fully automatic edge grinding of marble, granite, artificial stone, and ceramics. It is a continuous production line that eliminates the tedious work of replacing tools and fixtures for traditional single head machines.
The new generation multi head edging machine greatly reduces labor costs and improves efficiency. It is a processing equipment that is very suitable for large-scale stone edging with short delivery time orders, especially for large-scale projects.
Product features
1. The tool is easy to install and saves time.
2. Adopting the most common 30mm diameter wheel axle on the market, easily matching tools.
3. Simple and precise wheel axle positioning, as well as special waterproof treatment for the grinding head motor, ensure the longevity of the machine.
4. Professional mechanical structural equipment ensures high quality, high precision, and uniform gloss of products.
5. Automatic shortage alarm and shutdown function to prevent machine damage.
6. Easy to operate, one day of training is enough to get started. After the machine is debugged, only workers need to do the simple work of loading and unloading.
7. The bridge structure design of the conveyor belt greatly facilitates the cleaning of stone powder and the removal of crushed stones.
8. Specially designed pressure wheels ensure that the workpiece is firmly and accurately fixed and positioned, thereby achieving high-quality and high-precision edge grinding effects.
Technical Paremeter
| Range of processed stone thickness | mm | 3-80 |
| Minimum height for processing stone materials | mm | 80 |
| Total power | kw | 45.2 |
| Number of grinding heads | pcs | 13 |
| Maximum processing speed | m/h | 80 |
| Rated frequency | hz | 50 |
| Water consumption | L/min | 100 |
| Machine dimensions (length X width X height) | mm | 9500×1100×2000 |
| Gross weight of the machine | kg | 4900 |
| Grinding wheel aperture | mm | 30 |
| Diameter of electroplating cup wheel | mm | 130 |
| Grinding wheel diameter | mm | 140-200 |
| Saw blade aperture | mm | 50 |
| Blade Diameter | mm | 350 |
| Rated voltage | V | 380 |
| Diameter of water polishing disc | mm | 125 |
Diagram

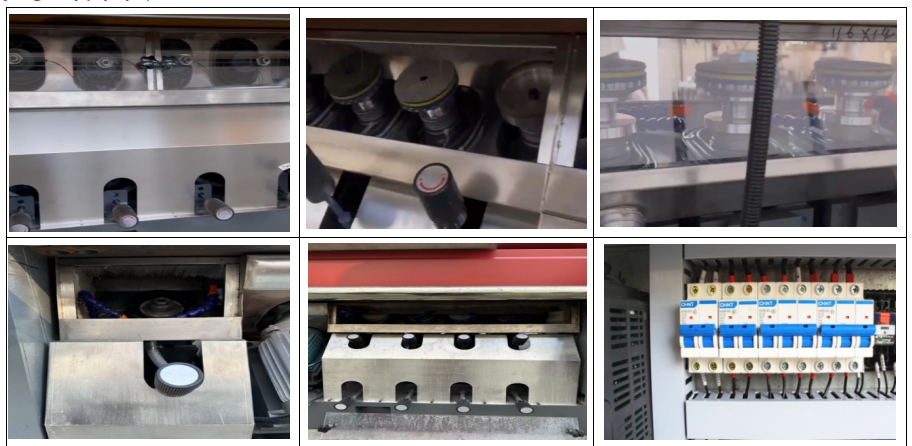

Product detaIls

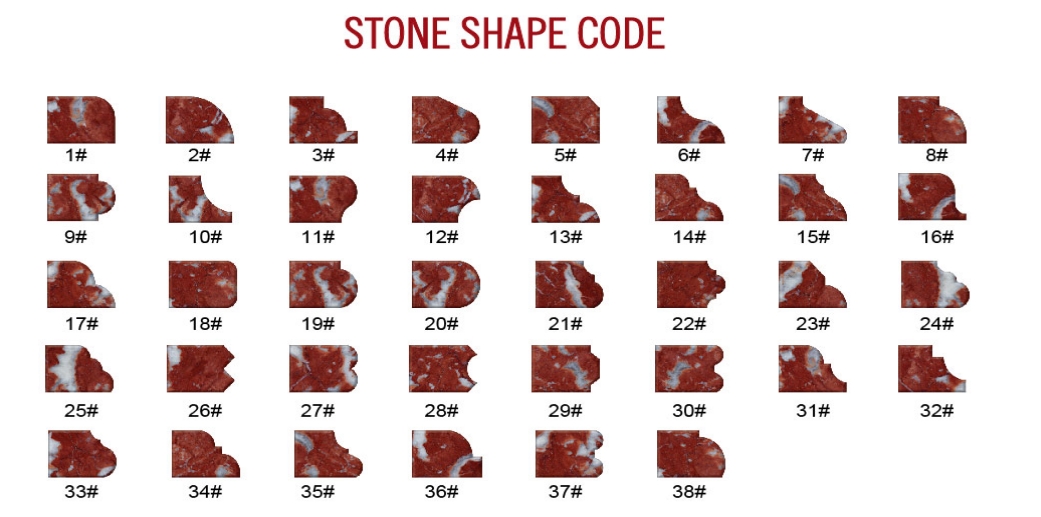

CUTTING EFFFECT

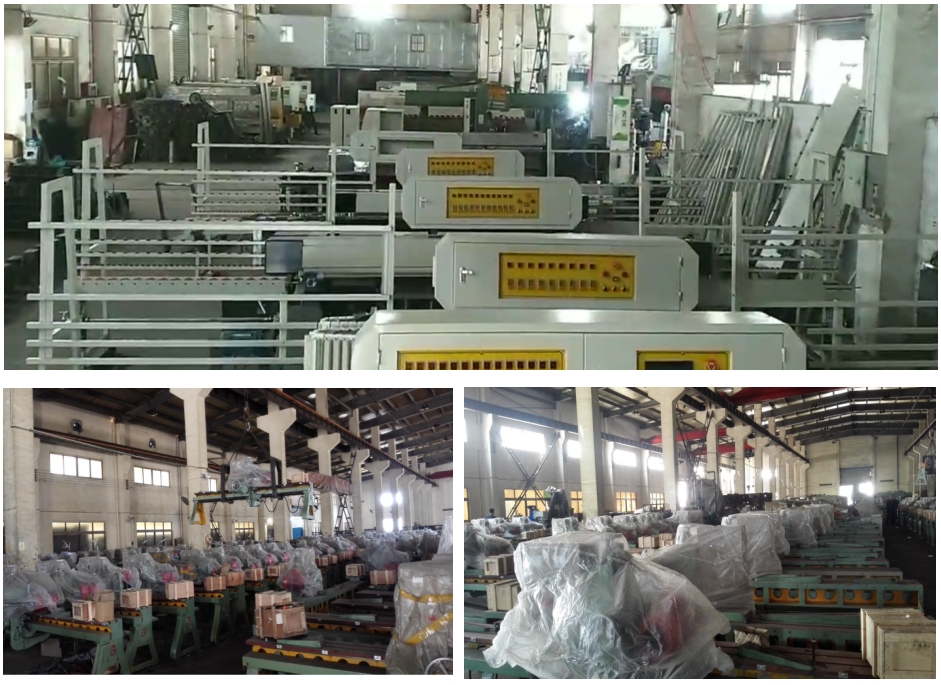

Workshop

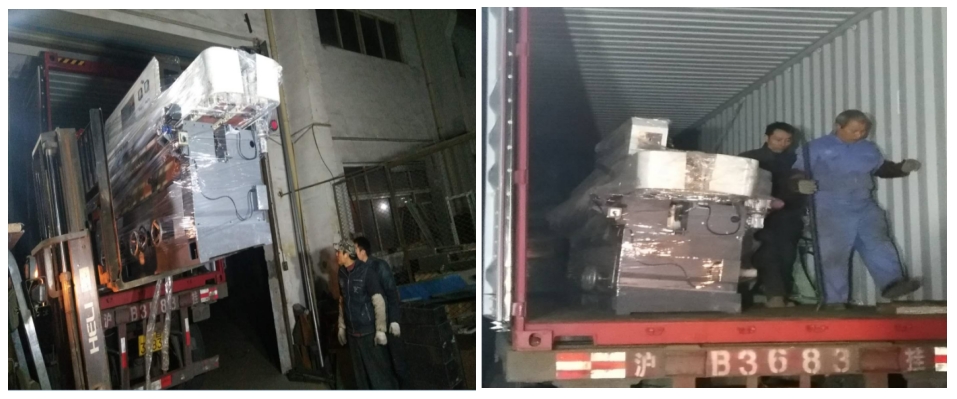

Loading

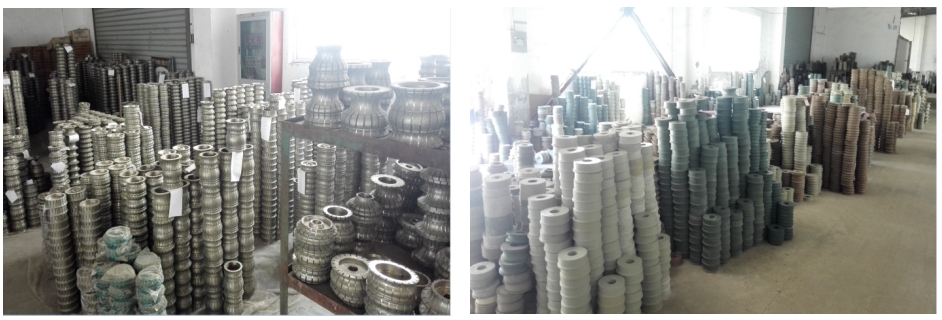

Related tools
