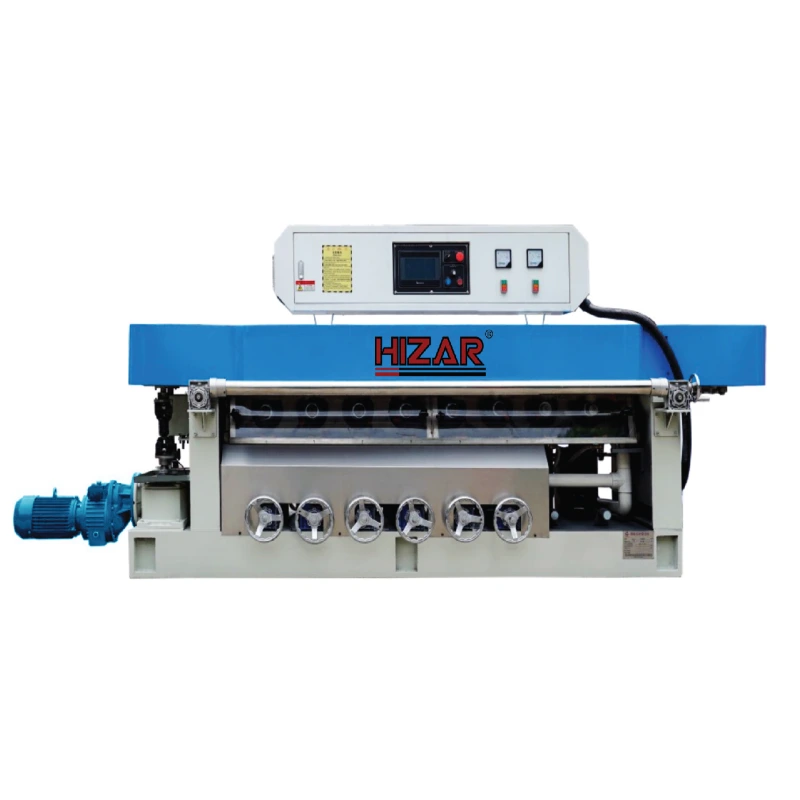

H6E-60B Vertical-type Edge Profiling Machine
The Vertical-type Edge Profiling Machine - H8E-60V for Granite is a high precision machine designed for shaping and polishing granite edges. Its vertical design allows for easy operation and precise results. With its powerful motor and multiple profiling heads, this machine can efficiently create various edge profiles, making it a versatile and valuable tool for granite fabricators.
PRODUCT FEATURES
This machine designed for a fulling automatic edge profling for all kinds of stone and glass.
1.Have /4heads /6heads/8head/ 11heads as your choice.
2.Continous processing line saving a lot of time for changing tools.
3. lt can process 4 sides edge of slab without changing anything. just continue feeding the slabs to the machine will be fine.
4. Machine has auto self-compensation for polishing, no need adjust by manual.
TECHNICAL PARAMETER
| Item | unit | H4E-60V | H6E-60V | H8E-60V | H11E-60V |
| Max. processing width | mm | 4000 | 4000 | 4000 | 4000 |
| processing thickness | mm | 3-60 | 3-60 | 3-60 | 3-60 |
| Min.processing size | mm | 44*44 | 44*44 | 44*44 | 44*44 |
| Dia.of profiling wheel | mm | 140-220 | 140-220 | 140-220 | 240-220 |
| Dia. of polishing wheel | mm | 160-200 | 160-200 | 160-200 | 160-200 |
| Main motor | kw/hp | 4-3.3/5.9-4.5 | 4-3.3/5.9-4.5 | 4-3.3/5.9-4.5 | 4-3.3/5.9-4.5 |
| Total power | kw | 15.3 | 22.5 | 28.5 | 38.5 |
| Overall dimesion | mm | 5500*1100*2250 | 6300*1100*2250 | 6500*1100*2250 | 6800*1100*2250 |
