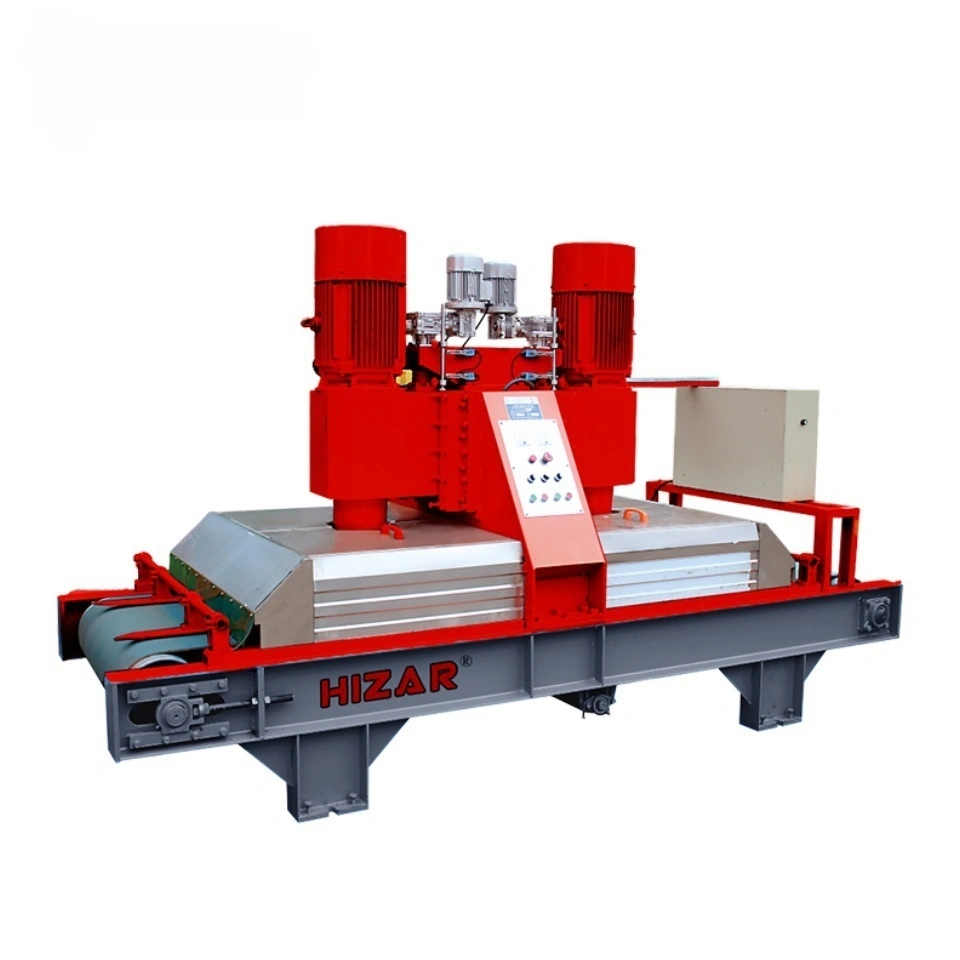

HCC800 Continuous Stone Calibrating Machine Slabs
The Hizar HCC800 Continuous Stone Calibrating Machine Slabs is a high-quality machine designed to accurately calibrate stone slabs with precision. Its continuous operation allows for efficient processing of large quantities of stone quickly and consistently. The machine's durability, speed, and accuracy make it an ideal choice for users looking to increase productivity and quality in their stone processing operations.
PRODUCT FEATURES
Our calibrating machine features a continuous-feed conveyor system that guides stone slabs under multiple grinding segments bonded with proprietary compounds tailored for different stone types. Adjustable pressure controls and segment configurations allow fine-tuning for materials ranging from delicate marble and mosaic to robust quartz and granite. The result is a perfectly leveled slab with mirror-like flatness and minimal material waste. Robust construction, easy segment changeover, and intuitive controls make this machine an indispensable asset for any stone fabrication shop aiming to achieve peak productivity and finish quality.
TECHNICAL PARAMETER
| TECHNICAL PARAMETER | HCC600 | HCC800 | |
| Max.Cutting Width | 600mm | 800mm | |
| Max.Cutting Thicknss | 80mm | ||
| Power of Head Motor | 11kw/2pcs | ||
| Speed of Convey Belt | 0.4-3m/min | ||
| Water Consumption | 2m³/h | ||
| Gross Power | 27.49kw | ||
| Total Weight | 2600kg | 2700kg | |
| Overall Diamension(L×W×H) | 3410×1300×1800m | 3750×1300×2000mm | |
