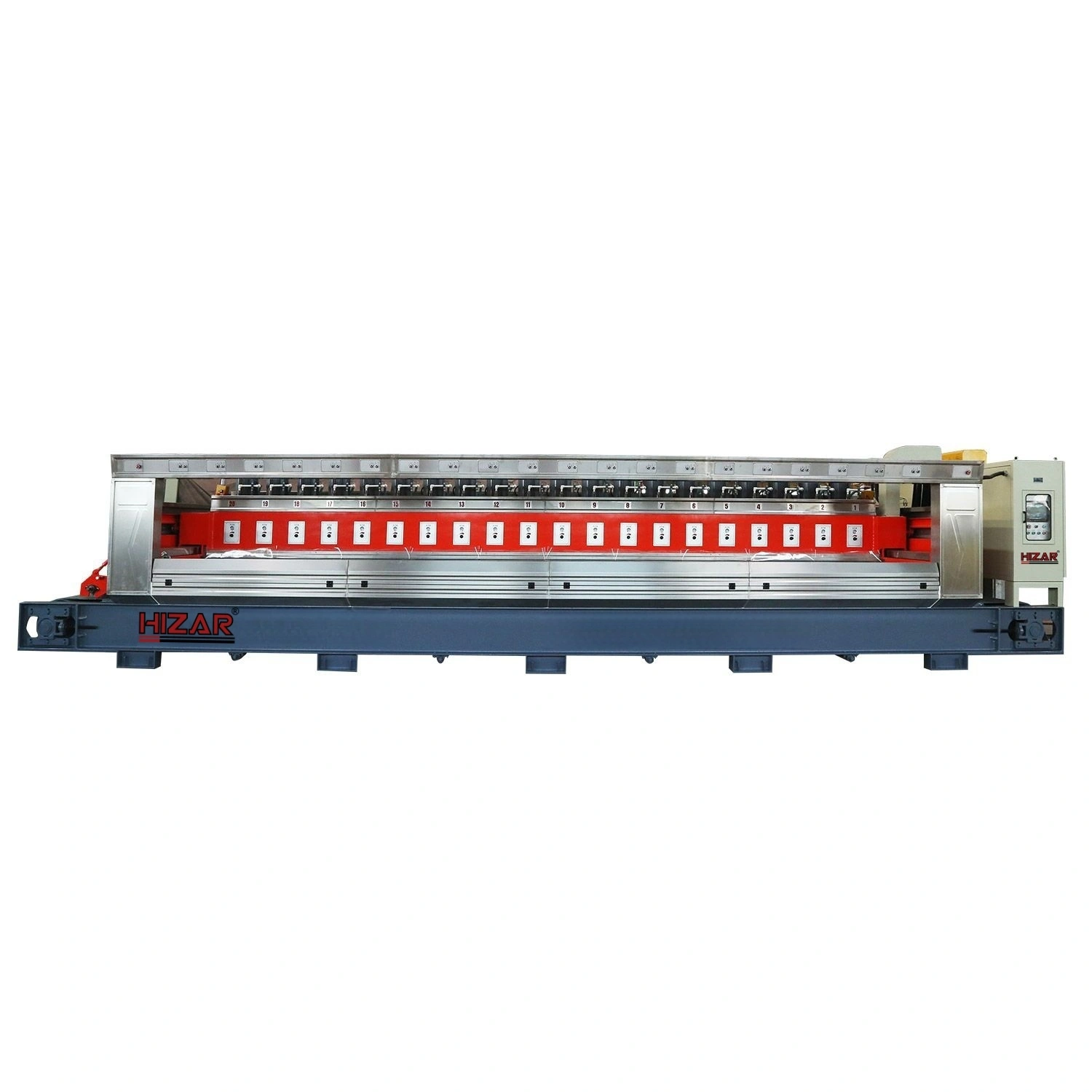

HAP -16 Stone Polishing Machine for Granite and Marble
Easy to operate,the stroke pressure when main spindle lits and falls,the beam travel,speed and the belt moving speed can be adjusted according to the stone materials and the requiring finishing gloss;
Product features
1、Granite Lath surface polishing special,using resin grinding plate special elastic grinding head,polishing more comprehensive,higher efficiency,lower abrasive wear;
2、Using PIC System and liquid crystal display screen menu,offering intelligent control;
3、Easy to operate,the stroke pressure when main spindle lits and falls,the beam travel,speed and the belt moving speed can be adjusted according to the stone materials and the requiring finishing gloss;
4、Auto-dodging function and shape-memory function,equipped with an advice to prevent the grinding head from mistakenly hitting the belt,higher automation operation and lower labor the strength;
5、Using the most advanced and high-quality construction,rational structure,high stability and efficiency,and energy saving operation;
6、Using central automatic lubrication system,so that all moving parts and bearings can get a good lubricating effect ,and longer life
7、The power movement of polishing heads uses the narrow V belt with teeth set,to improve slabs flatness,reduce movement consumption and enhances the longer service life.
Technical Paremeter
| ITEM NAME | unit | HAP-12 | HAP-16 | HAP-20 |
| Overall dimensions | mm | 9700*2900*2500 | 1180*2900*2500 | 1400*2900*2500 |
| Number of Polishing Head | pcs | 12 | 16 | 20 |
| processing width | mm | 300-2100 | 300-2100 | 300-2100 |
| processing thickness | mm | 10-60 | 10-60 | 10-60 |
| material | // | Granite/marble | Granite/marble | Granite/marble |
| Feeding speed | m | 0-4 | 0-4 | 0-4 |
| Head motor | kw | 15/20 | 15/20 | 15/20 |
| secondary motors | kw/hp | 5.5/7.3 | 5.5/7.3 | 5.5/7.3 |
| Total Electrical Power | kw/hp | 191/256 | 251/337 | 251/337 |
| Voltage | V/HZ | 220V/380V | 220V/380V | 220V/380V |
| water consumption | m3/h | 20 | 25 | 30 |
| PLC type | // | siemens /Schneider | siemens /Schneider | siemens /Schneider |
| touch screen | // | siemens /Schneider | siemens /Schneider | siemens /Schneider |
