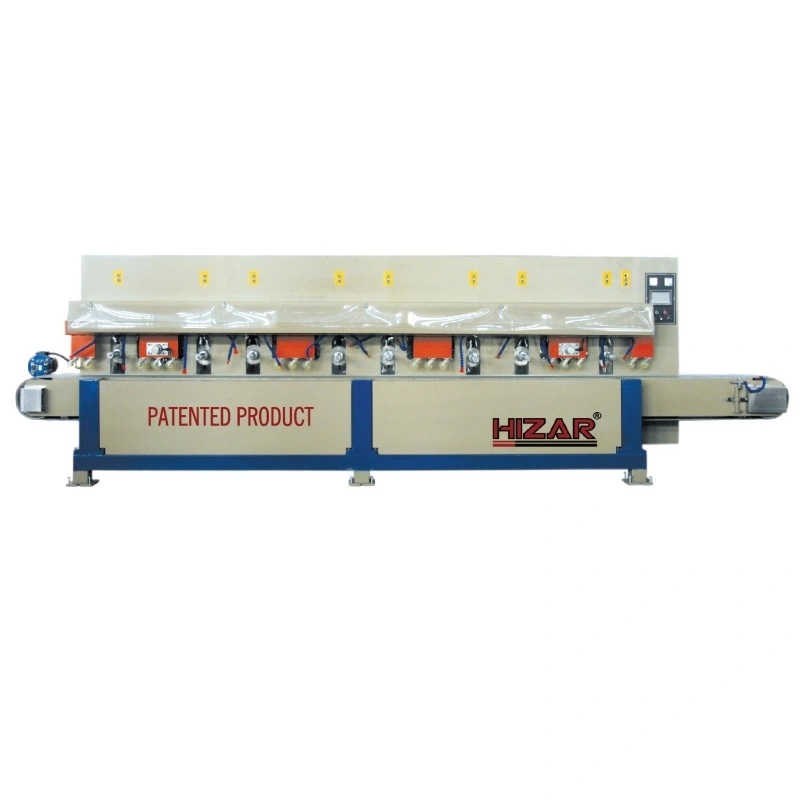

H8CG-200 Auto Multi Head Surface Profiling machine
Product features
H4/6/8CG-200 is mainly applied to profile marble,granite,artificial stone ,glass and ceramics,.etc With changeable grinding shaft,the machine has been improved a lot with excellent anti-water protection and high working efficiency.It can work from 200-400 meters a day(8 hours per day).
1. With two patented technology,we have solved the problem of remanent vestige,greatly improved the quality of profiling,Its products are “as smooth as jade”
2. Adopting imported electric components (SIEMENS),the machine features long life-span,stable performance.
3. Fast and accurate tool setting function.
4. Automatic up and down movement feeding.
5. Regular profiling wheel can used on it ,greatly improved the working efficiency and reduced the production cost .
3. Labor-saving & user-friendyly:
The machine is so popular among customers that it gained the name “Profiling Master” in stone industry.
Technical Paremeter
|
Item |
H8CG-200 |
|
Max. processing width |
250mm |
| Max. processing thickness | 150mm |
| Dia. of profiling wheel | φ140-200mm |
| Dia. of polihisng pads | φ160-200mm |
| Head motor | 7.5kw/10hp |
| Total power | 40kw /53hp |
| Processing Speed | 10-50m/h |
| Voltage / Hz | 380V/220V，60Hz，3phase |
| Overall dimension |
6150*1250*1800m |
| Gross weight | 4500kg |
WORKSHOP
LOADING &PACKING
Related TOOLS
² For granite: 1 pc Sintered wheel +1 pc Vacuum wheel +4 pcs Resin polishing wheel .
² For Marble: 1 pc Sintered wheel +1 pc Electroplated wheel +4 pcs Resin polishing wheel.
² For Ceramic: 2 pcs Electroplated wheel +4 pcs Resin polishing wheel.
Application
