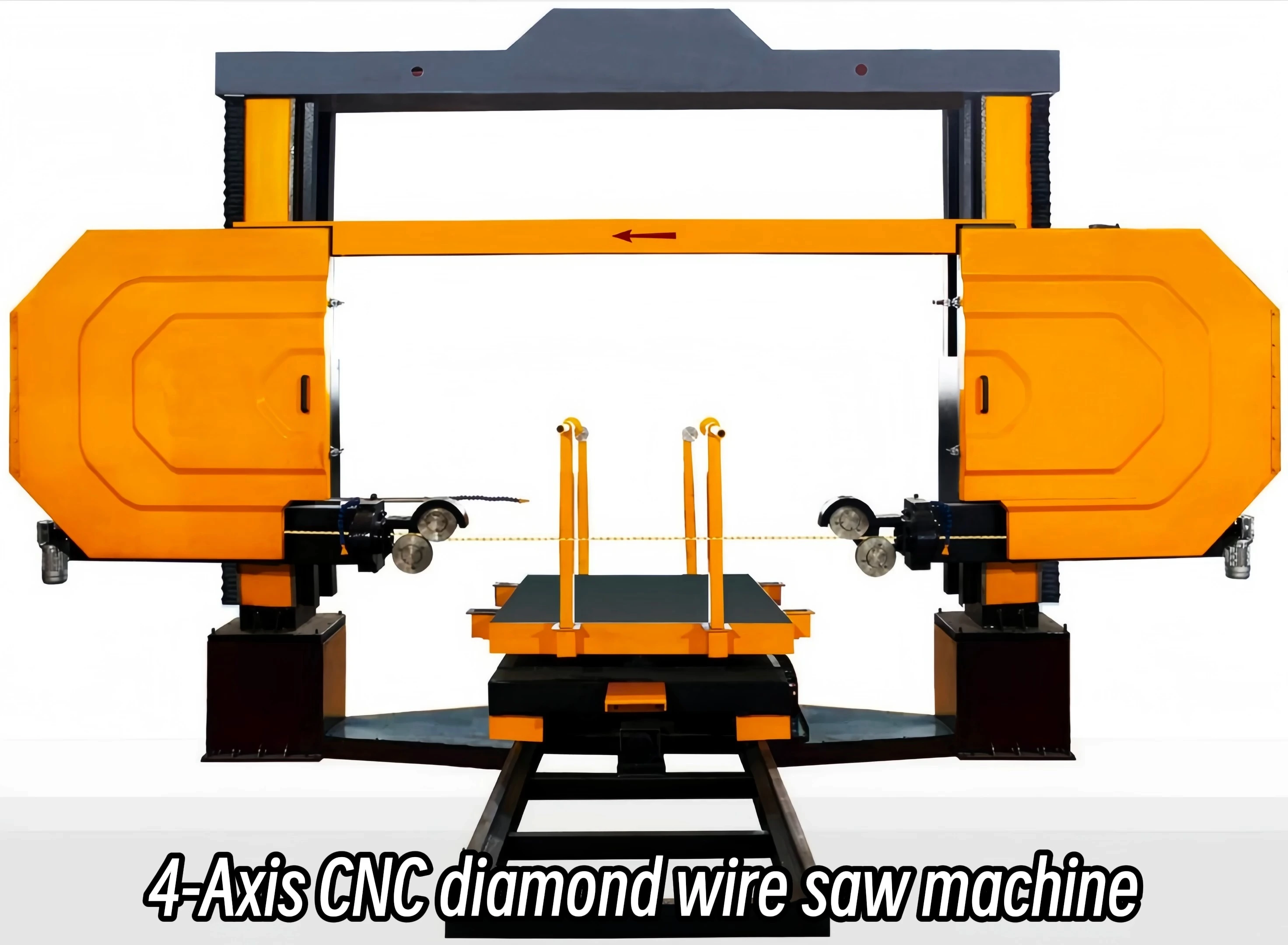

HCNC 3500 Wire Saw Cutting &Shaping Machine
CNC-3500 adopts CNc system,four linkage,use 16 surfaces slideway, 28pcs roing wheels structure.And synchronous lifting through intermediatedrive,with 360"rotary trolley,cuting stable and with high eficiency,t can dress 4 surfaces.Moreover,as it's with cNc system,it can prosess the columnslab,pillar,roman,column,numeral,letter,Chinese characters and other shapes for the stone.
Product features
The machine adopts CNC control system, man-machine integration operation interface, supplemented by super high precision servo motor drive, lifting is controlled by four independent guide rail, flywheel around walking up and down the track, stable equilibrium.The flywheel adopts tension force balance method, improve the service life of emerald beads rope.The Z axis Y speed can be adjusted according to the texture of stone material, improve the cutting precision of the aliens.In high speed moving parts adopt imported high quality spare parts, and cutting with high efficiency, high cutting precision, high stability, easy and flexible operation etc, especially suitable2 for the high value of granite, marble plate cutting profile processing
Processing Capabilities:
The CNC-3500 can machine a wide variety of stone shapes, including:
Column Slabs
Pillars & Roman Columns
Numerals, Letters & Chinese Characters
Custom 3D Carvings & Architectural Elements
Technical Paremeter
| Model | HCNC-3500 |
| Total Power | 17.5 KW/23.79hp |
| Main motor power | 15KW/20.39hp |
| Saw diameter | Φ8-Φ11mm |
| Beaded rope diameter | 165000mm |
| Line speed | 22-33m/s |
| Vertical travel of cutter | 2200mm |
| Trolley size | 2500*1300mm |
| Max Process size | 2500*3000*1500mm |
| Production efficiency | 1-2m²/h(marble) 0.5-1²/h(granite) |
| Overall size | 6700*6350*4200mm |
| Weight | 6350kg |
